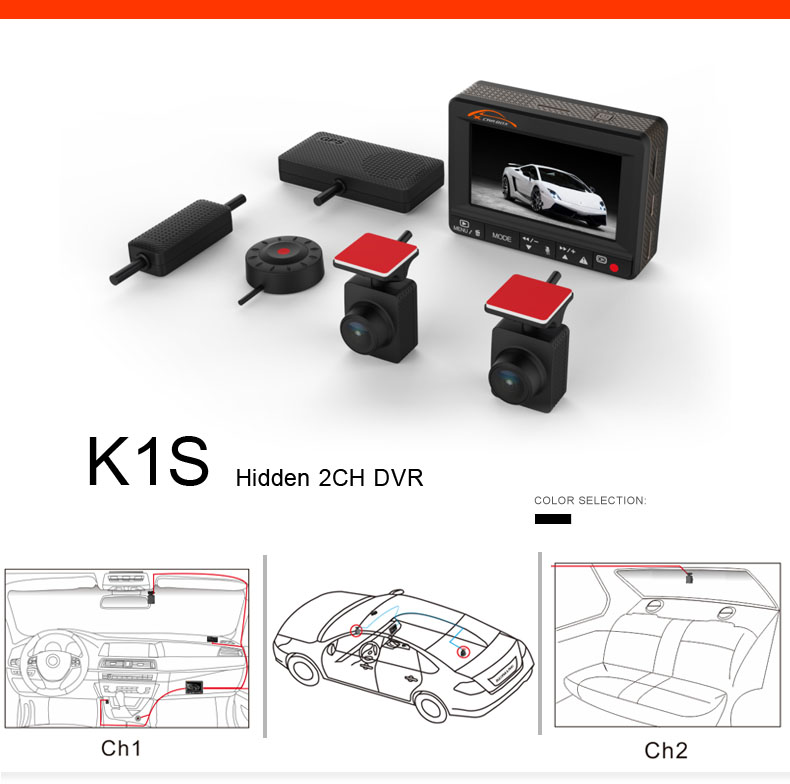

Car DVR - K1S

Dual Camera
Two 1080p cameras with simultaneous recording of the front and back channels.
Wide Dynamic Range: Koonlung’s WDR is based on quality hardware rather than the cheaper software solution, allowing for better WDR results during very challenging light conditions.
Lane Departure Warning System. The driver will be warned when the vehicle begins to move out of its lane.
It can de-warp the fisheye effect of the lens, to make the picture look more natural.
SpeedCam Module
The Speedcam along with the GPS, detects the location, direction and route of your vehicle and determines, through a database, the location of a speed camera in the area then warns the driver of an upcoming fixed speed camera, red light camera etc.

Key Features

1080P 2CH Car DVR
360° rotatable and 60° tilt mini dual lens
Wired control
Fully hidden system

Record Hardware

Chipset: Ambarella A7LA70
Ambarella 528MHz A7LA70 chipset
1/2.7" Omnivision sensor
Lens: 6GIR F/2.4 angle 140°
LCD: 2.7" 16:9 HD 960x240 LCD
Max Resolution: 1920×1080 30fps(20M front and back)
Battery: 1100mAh interchangable Li-ion
Lens demensions: 28(L)x28(W)x36(H) mm
External memory: Micro SD card up to 32GB
GPS + speed cam: Optional
Interface: front cam, back cam, GPS module | wired control, power in | AV out
G-sensor: Yes

Product Views and Dimensions
